What is lost wax casting

Lost wax casting is also called the precision casting or investment casting, it is with fusible materials (wax and plastic, etc.) made precise meltability model, on the model which are coated with several layers of refractory coating, such as gypsum, silica sol, after drying, the hardened into the whole shell, then heating type shell model, then through high temperature roasting and become refractory shell, poured liquid metal into the shell, The casting will be formed after cooling.Lost wax casting is a casting process with little or no cutting. It is an excellent technology in the casting industry, and it is widely used.

Characteristics of lost wax casting

1、Lost wax casting castings have high dimensional accuracy and surface finish, which can cast castings with complex shapes. The general accuracy can reach 5~7 levels;

2、Lost wax casting can be very small castings, the minimum wall thickness of investment casting can be up to 0.5mm, weight can be as small as a few grams;

Casting of fine patterns, characters, castings with fine grooves and curved holes;

3、 The shape and inner cavity shape of investment casting are almost unlimited, which can make parts with complex shapes that are difficult to be made by sand casting, forging, cutting and other methods.

4、There is almost no limit to the type of casting material, often used to cast copper, alloy steel, carbon steel and heat resistant alloy castings;

There is no limit to the quantity of production, which can be produced in large quantities from single to batch.

5、The shortcoming of investment casting method is that the process is complex and the production cycle is long. It is not suitable for the production of castings with large outline size

Application of lost wax casting

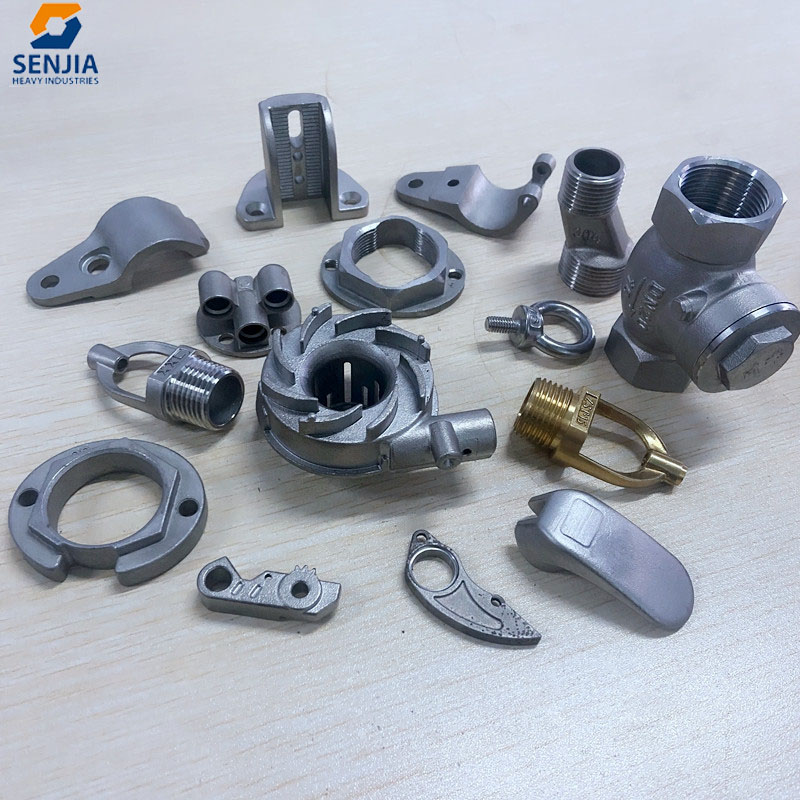

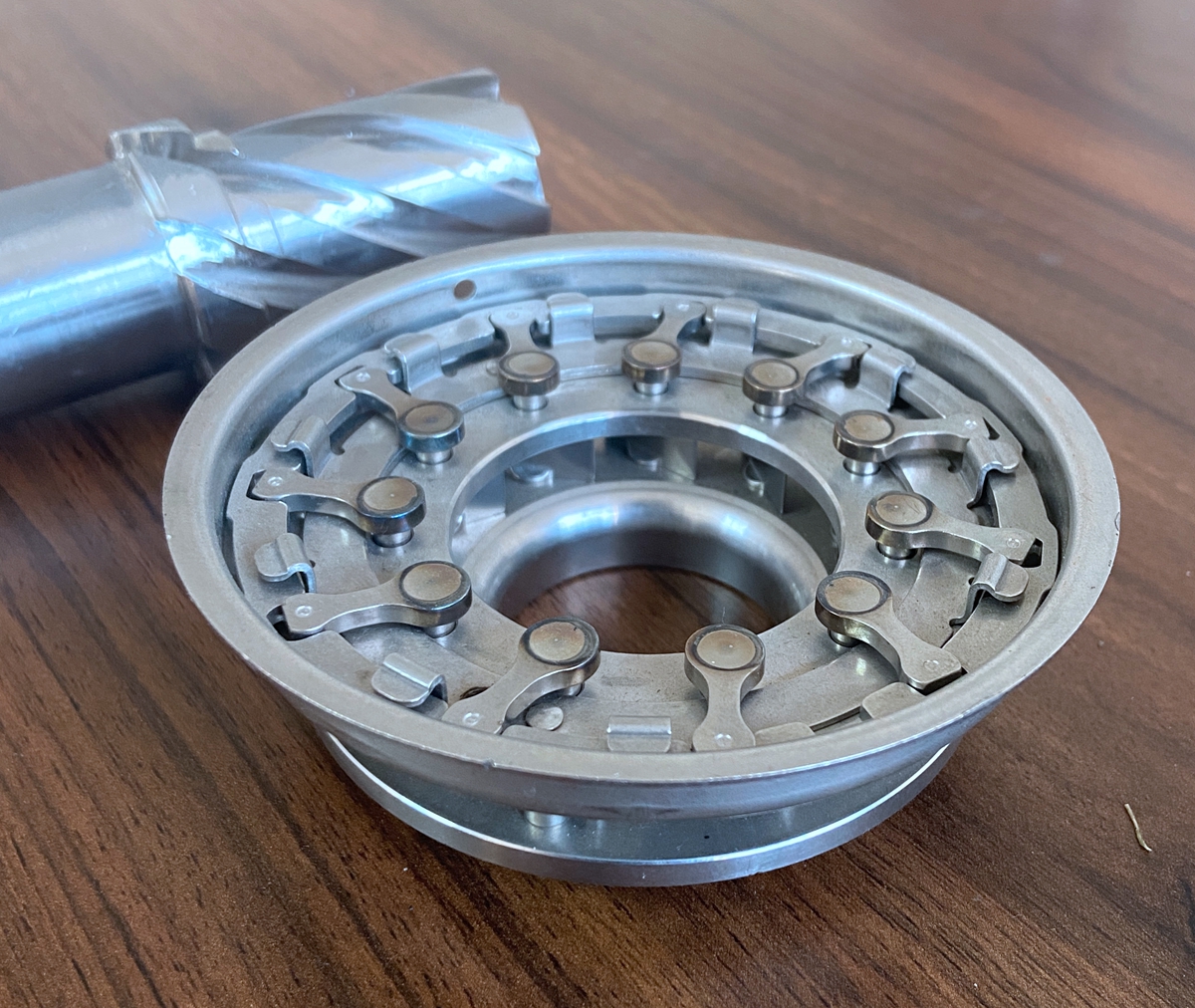

Lost wax casting is mainly used for casting small precision parts with complex shapes. The use of high melting point alloy precision castings in batches, large production, complex shape, difficult to cut small parts. Such as: such as steam turbine, gas turbine, water turbine engine blade, impeller, guide, guide wheel and cars, tractors, pneumatic tools, machine tools on the small parts, and crafts.
