Introduction

In an era where industries demand components with micron-level accuracy and intricate geometries, lost wax casting stands as a cornerstone of precision manufacturing. Dating back over 5,000 years yet powered by modern technology, this process produces mission-critical parts for jet engines, surgical implants, and even Michelangelo-esque sculptures. As a ISO 9001-certified lost wax casting manufacturer, Senjia Group has delivered over 3 million castings since 2002.

What is Lost Wax Casting?

Lost wax casting (also called investment casting) is a metal-forming process where a wax prototype is melted away (“lost”) to create a ceramic mold, which is then filled with molten metal to produce near-net-shape components.

Key Capabilities

• Tolerance: ±0.1 mm (ISO 8062 CT6)

• Surface Finish: Ra 1.6–6.3 μm (10x smoother than sand casting)

• Thinnest Wall: 0.5 mm (achievable with vacuum-assisted casting)

• Material Range: Stainless steel (316L/304), superalloys (Inconel 718), titanium (Grade 2/5), and aluminum alloys.

The Lost Wax Casting Process: 7 Steps Explained

Here’s how Senjia Group transforms raw wax into aerospace-grade components:

1. Pattern Creation

• Materials: Injection-molded wax or 3D-printed resin (for rapid prototyping).

• Tech Used: SLA/DLP 3D printers achieve ±0.05 mm pattern accuracy.

2. Assembly & Gating

• Wax patterns are mounted on a central “tree” using robotic arms, minimizing human error.

3. Ceramic Shell Building

• Coating: 7–9 layers of silica sol and zircon sand applied via automated dipping.

• Drying: 12-hour controlled humidity chambers prevent shell cracking.

4. Dewaxing

• Equipment: Steam autoclaves melt wax at 150°C, recovering 95% for reuse.

5. Mold Firing

• Temperature: 850–1100°C for 4–8 hours to sinter the ceramic shell.

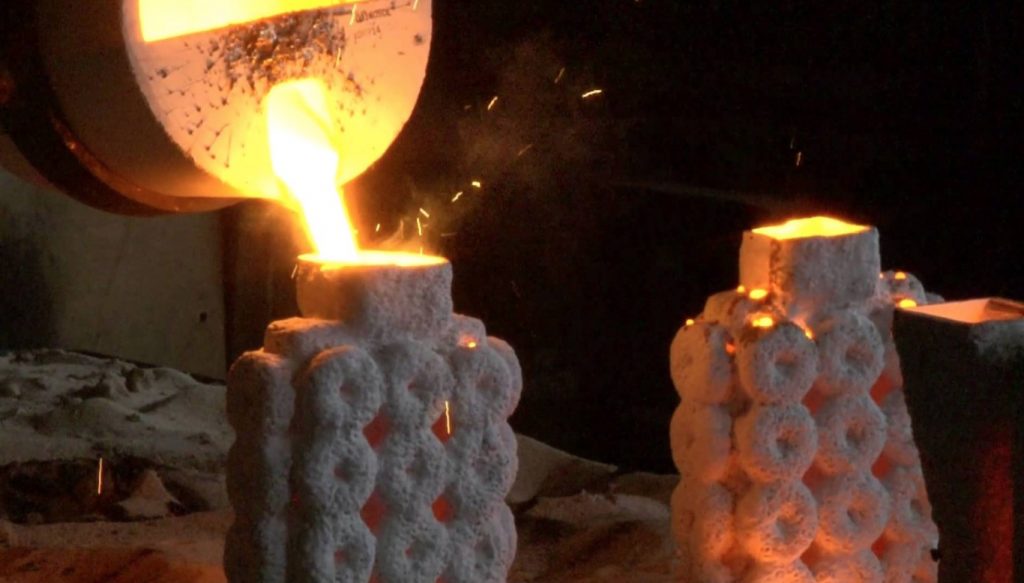

6. Metal Pouring

• Vacuum Casting: For titanium/aluminum to reduce gas porosity.

• Gravity Casting: For stainless steel and superalloys.

7. Post-Processing

• CNC Machining: Achieve final dimensions (e.g., ±0.025 mm for turbine blades).

• Quality Control: X-ray, dye penetrant testing, and spectrometer validation.

Lost Wax Casting vs. Other Processes

A technical comparison for engineers:

Lost Wax Casting vs. Other Processes

A technical comparison for engineers:

FAQs

Q: Is lost wax casting suitable for high-volume production?
A: Yes! With automated wax injection and shell-building lines.

Q: What’s the maximum size for lost wax castings?
A: Up to 300 mm × 500 mm × 300 mm (custom solutions available).

Q: How do you ensure material integrity?
A: Every batch undergoes spectrometer analysis (meets ASTM E1479) and X-ray inspection (ASTM E802).
